102WPSERIES
| Waterproofness | Locking method |
|---|---|
| Waterproof(IP67) | One-touch lock |
| Current capacity | Number of poles |
|---|---|
| 1A | 1268 |
Compatible cable diameter
φ4.0 / φ5.0 / φ6.0
External dimensions may vary depending on the compatible cable diameter.
Coupling surface (female)

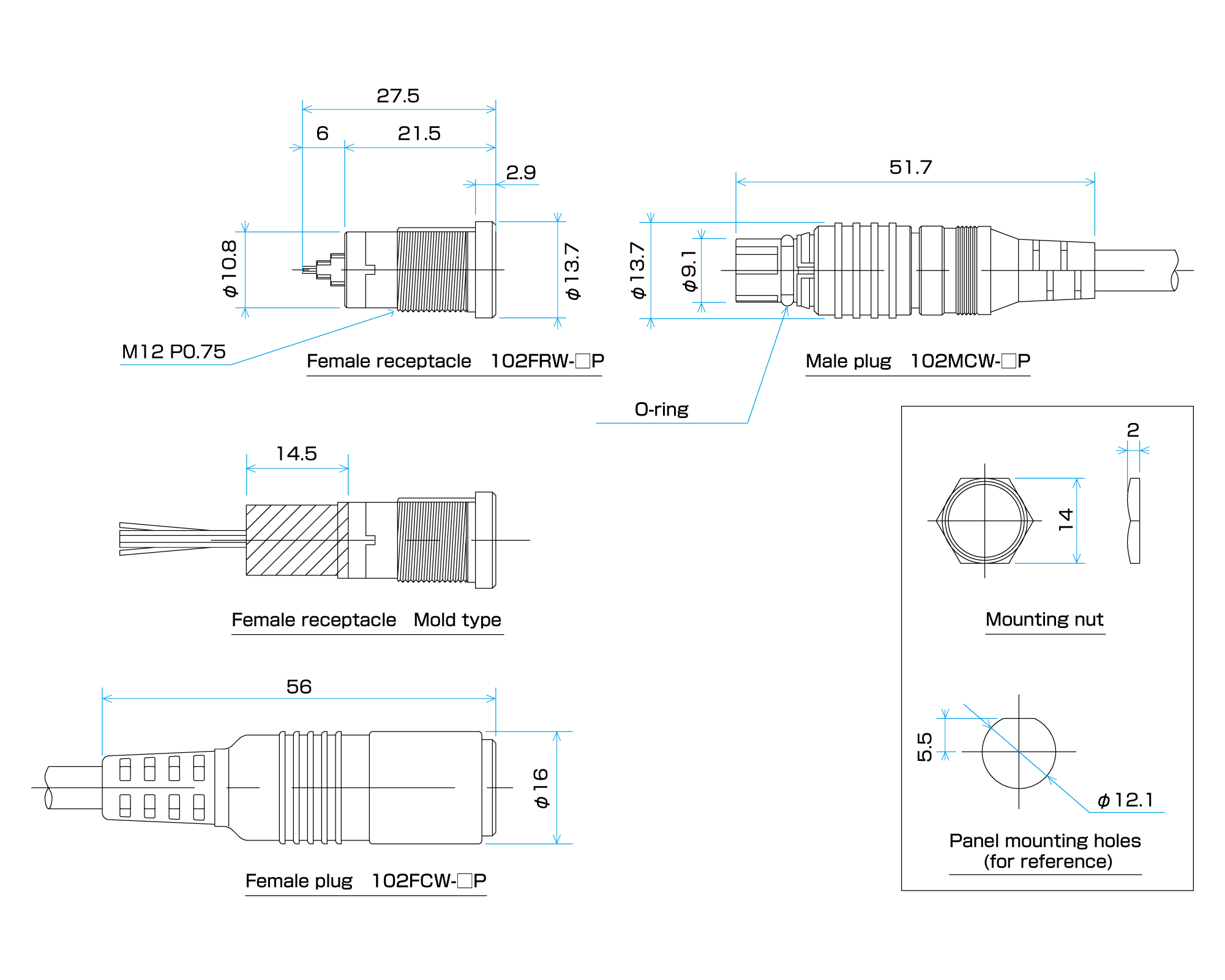

External dimensions(mm)
Cable specification
| 5-conductor, fully shielded cable | |
|---|---|
| Core wire | AWG28 |
| Shield type | horizontal winding |
| Outer diameter(mm) | φ4.1 |
| Withstand voltage | AC500V/1minute |
| Insulation resistance | 5MΩ・km |
| Conductor resistance | 237Ω/km |
| 形 式 | TZ-833D |
| Red/White/Blue/Black/Green | |
| 8-conductor, fully shielded cable | |
|---|---|
| Core wire | AWG28 |
| Shield type | horizontal winding |
| Outer diameter(mm) | φ4.8 |
| Withstand voltage | AC500V/1minute |
| Insulation resistance | 5MΩ・km |
| Conductor resistance | 198Ω/km |
| Type | TG-206 |
| Red/White/Blue/Black/Green/Yellow/Gray/Brown | |
| 12-conductor, fully shielded cable | |
|---|---|
| Core wire | AWG28 |
| Shield type | horizontal winding |
| Outer diameter(mm) | φ5.8 |
| Withstand voltage | AC500V/1minute |
| Insulation resistance | 5MΩ・km |
| Conductor resistance | 228Ω/km |
| Type | TZ-991 |
| Red/White/Blue/Black/Green/Orange/Purple/Yellow/Gray/Brown/Peach/Bright Grass | |
*We can modify our connectors to fit cables other than those listed above (supplied or newly manufactured).
